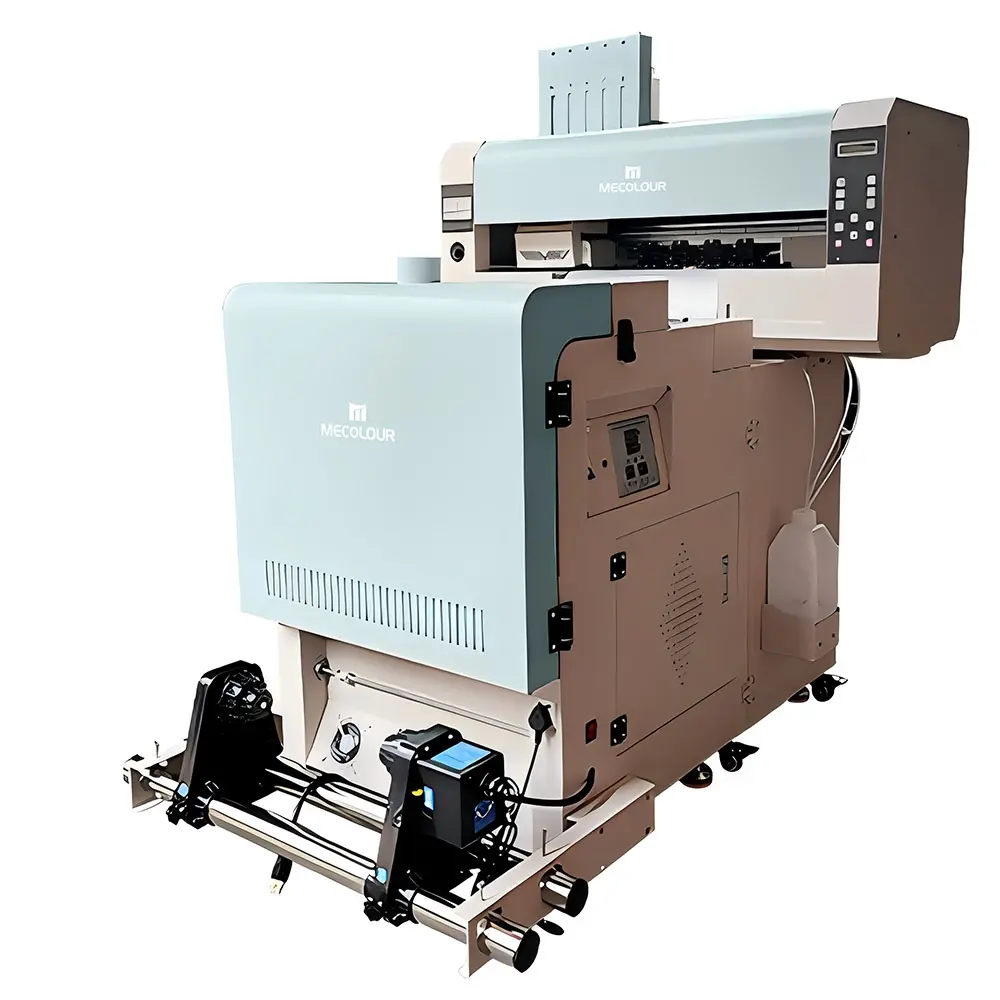

30cm DTF Printer
30cm DTF Printer is simple and easy to use, printing + dusting + drying, all in one go.
Product Features
1. Shake powder machine adopts automatic induction rewinding function, saving time, effort and labour.
2. Simple and easy to use, printing + dusting + drying, all in one go.
3. Waste powder recycling technology, to avoid waste, cost savings.
4. White ink mixing and circulation, no precipitation, to protect the smoothness of printing.
5. Small format printing, low cost, save space, save material, bright picture, suitable for personalised customisation.
6. White color with the same out, applicable to a variety of colours clothing personalization.
Technical parameters and specifications
Name Model: A235
Number of printheads: 2
Printhead Model: XP600
Printing speed: 6PASS 2.8㎡/h, 8PASS 2㎡/h
Printing medium: DTF Printing Film
Ink type: DTF ink
Printing interface: Gigabit network interface
Media width: 300mm
Input power: 220V / 110V
Printing height: Adjustable height 0~12mm
Ink supply system: 450ML alarm ink bottle, negative pressure ink supply
Drying system: Triple drying inside the body, infrared drying built-in powder shaking
RIP software: Montel 6.1 PP
Machine weight: 66.5KG
Machine size: 1080*1515*1250mm (including shaking powder machine)
Package size: 1140*645* 630mm
Technical parameters and specifications
Name and model: A235 All-in-one Reel Dithering Printing Kit
Media width: 0-500mm
Functional items: Intelligent control panel (shaking control, dusting control, curing temperature control)
Heating function: Infrared carbon fibre heating tube
Drying tunnel length: 900mm
Rewinding function: Automatic induction rewinding
Voltage: 110V / 220V
Electrical reference: Rated current 220V 14A 110V 28A Rated power 3KW
Machine size: 940*740*990mm
Packing size: 780*770*1120mm
Net weight: 65KG
Gross Weight: 85KG
